1000kg Vacuum induction furnace / vacuum melting furance

FOB Reference Price:Get Latest Price
1 Set/Sets Vacuum induction furnace (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Shanxi, China
Brand Name:
HR
Model Number:
ZGL-1000L
Usage:
Melting Furnace, Melting furnace
Voltage:
380V
Certification:
CE,ISO9001
Type:
Vacuum induction melting furnace, Vacuum Induction melting furnace
Dimension(L*W*H):
as per design drawings
Capacity:
1kg~3000kg
Ultimate vacuum:
6.67 x10-3
Max. temperature:
1800°C
Pressure rise rate:
<10Pa/h
Advantage:
Fast heating speed, less pollution
Total Power:
23kw~550kw
Cycle time:
20mins
vacuum melting furnace:
1000kg Vacuum induction furnace
Warranty:
12 month
After-sales Service Provided:
Engineers available to service machinery overseas
Power(W):
200kw
Weight:
500kg~5000kg
Supply Ability
Supply Ability:
350 Set/Sets per Month Vacuum induction furnace
Packaging & Delivery
Packaging Details
vacuum induction melting furnace standard wooden crates for exported goods,water-proof, anti collision, good fixation.
Port
Shanghai or Ningbo Port



Product Description

1000kg Vacuum induction furnace / vacuum melting furance

Project design→Manufacturing→Installation and commissioning→Turnkey project delivery

   1000kg Vacuum induction furnace / vacuum melting furance

Features

1.Continuous pouring and casting ingots

2.Counter flow cooling ingots

3.Bottom pouring and top casting

4.Manual adjusting pouring speed

5.Automatical additional charging

6.Automatical mold pallet

7.High efficiency, low power consumption

8.Heating mode:  Electromagnetic heating

9.Raw material:Metal alloy

10.Heating mode:  Electromagnetic heating

11.vacuum induction melting furnace

12.induction furnace

1000KG directional solidification vacuum induction melting furnace


1000kg Vacuum induction furnace / vacuum melting furance

• Equipped with advanced vacuum furnace dedicated medium-frequency power,

• digital Control, 8-passageway water flow control protection and pressure protection,

• electric command device adopt electrical contactor manufactured by Sneijder or Siemens,

• while output cable adopt water-cooled cable.

• Capacitor cabinet designed to sealing structure, equipped with capacitor and water-cooled cable,

• compact structure, reasonable layout, safety and reliability.
• Induction heater adopts T3 copper tube, sulfidizing for watchcase, adopting special insulation material for packing.
• Carbon materials take high temperature insulation materials, Layer around or the whole custom
 vacuum induction melting furnace Insulation materials take high-temperature insulating ceramics..

11

1000kg Vacuum induction furnace / vacuum melting furance

medium frequency vacuum melting furnace production description

• Crucible drive mechanism adopting variable frequency controlled drive motor to drive reducing mechanism.

• With the characteristic to regulate agility and stabilize speed.

• Stainless steel furnace body manufactured though National Vacuum Pressure Vessel Standard.

• Double-deck water-cooled; special vacuum stainless flange; high sealing vacuum sealing ring, with the characteristic of wear.
• Steel rail mobile Rack used for moving furnace and cooperating topple over,

vacuum induction melting furnace ensure reversing molten steel to the right direction.

13



You May Like:

you may like 15 you may like 14 you may like 12 you may like 16



you may like 13 you may like 11 you may like 18 you may like 10



16

1000kg Vacuum induction furnace / vacuum melting furance

ZGL vacuum induction melting furance technical parameter

Model

Rated power(Kg)

 Ultimate vacuum (Pa)

Max.

temperature(°C)

Power(Kw)

Frequency(Hz)

Total power(Kw)

Overall size

(LXWXH)
(m)

ZGL-0.001

1

6.67×10-3

1800

20

8000

25

3.0×1.5×1.85

ZGL-0.005

5

6.67×10-3

1700

50

4000

58

3.2×1.5×1.85

ZGL-0.01

10

6.67×10-3

1700

50

8000

58

3.2×1.5×1.85

ZGL-0.025L

25

6.67×10-3

1700

80

4000

100

4.0×2.5×2.3

ZGL-0.05L

50

6.67×10-2

1700

100

2500

120

3.8×3.5×2.3

ZGL-0.1L

100

6.67×10-3

1700

160

2500

180

4.0×3.5×2.45

ZGL-0.2L

200

6.67×10-3

1700

200

2500

240

4.0×3.4×3.0

ZGL-0.3L

300

6.67×10-3

1700

350

2500/1000

400

4.5×4.0×3.5

ZGL-0.5L

500

6.67×10-3

1700

500

1000/500

550

6.0×5.0×4.5

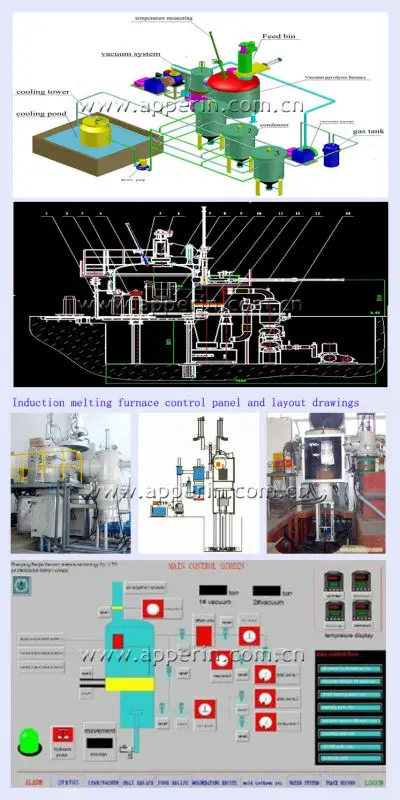

vacuum induction melting furnace layout drawings

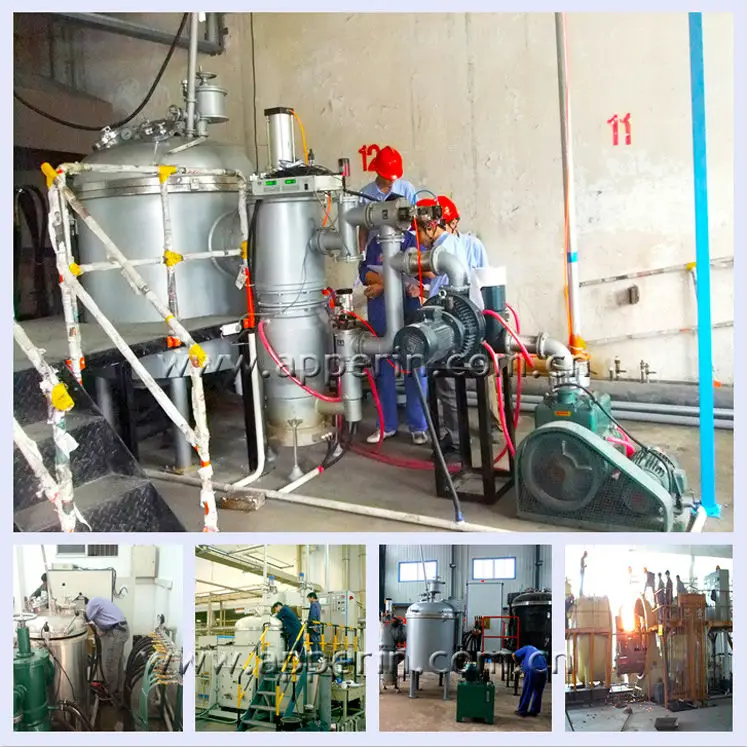

induction melting furnace Installation And Commissioning


vacuum induction melting furnace widely be used in

lab, university research laboratory , Military factory ,steel plant .etc..
